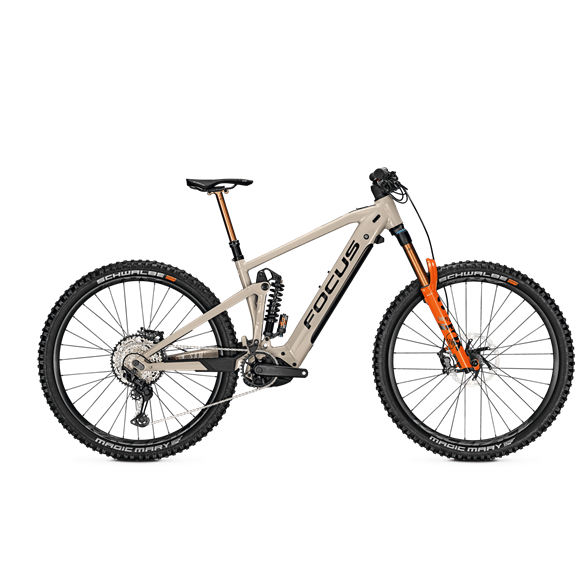

Focus SAM² 6.9

SKU: D641518002

SAM² 6.9 FEATURES

POWERFUL DYNAMIC BOSCH PERFORMANCE CX E-DRIVE WITH INTEGRATED, REMOVABLE 625 WH BATTERY

170 MM F.O.L.D. CHASSIS: BRANDNEW FOX 38 FACTORY SUSPENSION FORK IN RACING ORANGE AND FOX VAN COIL REAR SHOCK PLUS THE NEW FOX TRANSFER FACTORY DOPPER POST

FULLY INTEGRATED C.I.S. CABLE ROUTING WITH RELIABLE PRECISE SHIMANO XT 1X12 SHIFTING AND STRONG XT 4-PISTON BRAKES

DESIGNED FOR DOWN

  • SUPER POWERFUL AND DYNAMIC E-MOTOR

    The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.

  • OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION

    Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

  • MADE FOR DOWN

    A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. The fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).

SPECIFICATION

FRAME MATERIAL Aluminium FRAME7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm

FORKFOX 38 Float Factory 29, E-Bike, Grip 2, 110 x 15 mm, 44 mm rake, 170 mm travel TRAVEL FORK170 mm

SHOCKFOX Van Performance Coil, 230/65 mm, hardware: 25,0 x 8mm

MOTOR Bosch Performance CX Gen4, 85 Nm, 250 WBATTERY WATT-HOURS625 Wh BATTERY AMPERE HOURS16,7 Ah DISPLAYBosch Purion

SHIFTER Shimano Deore XT M8100, 12-speedREAR DERAILLEUR Shimano Deore XT M8100, 12-speedSPROCKETShimano SLX M7100, 12-speedCHAINShimano SLX CN-M7100CRANKSETSamox EC40 ISISTRANSMISSION OF DRIVE front: 34, rear: 10-51BOTTOM BRACKET Integraded in Drive Unit

HANDLEBAR RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degreeGRIPSRaceFace Getta Grip STEM FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium HEADSET Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40]

SADDLE Proxim W350SEATPOSTFOX Transfer RL Factory, 31,6mm

BRAKES Shimano XT M8120, 4 piston BRAKE LEVER DESCRIPTION Shimano XT M8120, 4 piston BRAKE Disc

RIMS RaceFace AR30 Offset REAR HUB Novatec D162 Disc, 12x148 mm FRONT HUB Novatec D041, 15x110 mm TIRES Schwalbe Magic Mary 2.6 Super Trail Soft REAR TIRE Schwalbe Magic Mary 2.6 Super Gravity SoftGEARS12BIKE WEIGHT INCL. BATTERY IN KG.25,95 kg
