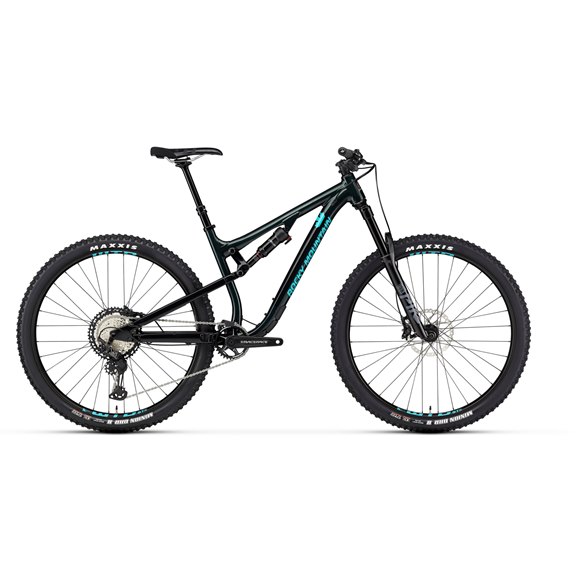

Rocky Mountain Instinct Carbon 50
Technical details
• Increased anti-squat for better pedalling efficiency
• 29" Wide Trail and 27.5"+ compatible
• Bearings at all pivots, including at lower shock mount
(compatible with aftermarket shocks as well)
• Single-sided pivots maximize heel clearance
• Lighter, tooled rear axle
• Improved cable management: large headtube slots, full
shift housing, large downtube exit, and internal shift and
brake housing
• Seat-tube lengths optimized to accommodate longer
dropper posts
• Chainstay and downtube protectors
• Integrated Spirit Guide chainguide, with two-bolt ISCG05
• 1x only
• Lower standover height
• All sizes fit a water bottle in front triangle, even with
a reservoir shock
Frame: SMOOTHWALL Carbon Front Triangle. FORM Alloy Rear Triangle. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-9 Adjustable Geometry + Suspension Rate
Sizes: S - M - L - XL
Fork: Fox 36 Float EVOL GRIP Performance Series 140mm 44mm Offset
Front Travel: 140mm
Shock: Fox Float DPS EVOL Performance
Rear Travel: 140mm
Headset: FSA Orbit NO.57E
Stem: Rocky Mountain AM
Handlebar: Rocky Mountain AM 760mm
Grips: Rocky Mountain Lock On Light
Brakes: Shimano SLX 2 Piston / Shimano RT66 180mm / Shimano RT66 180mm
Brake Levers: Shimano SLX
Shifters: Shimano SLX
Rear Derailleur: Shimano XT
Cranks & Chainrings: Race Face Aeffect Cinch 32T Steel
Bottom Bracket: Shimano SM-BBMT500
Cassette: Shimano SLX 10-51T
Chain: Shimano HG7100
Front Hub: Rocky Mountain Sealed Boost 15mm
Rear Hub: DT Swiss 370 Boost 148mm
Spokes: DT Swiss Competition 2.0/1.8/2.0
Rims: WTB ST Light i30 TCS 2.0 Tubeless
Tires: Maxxis Minion DHR II WT EXO Tubeless Ready 29 x 2.4 / Maxxis Minion DHR II WT EXO Tubeless Ready 29 x 2.4
Seatpost: OneUp Dropper Post 30.9mm
Saddle: WTB Volt Race 142
Weight: 13.60 KG / 30.0 LBS
We make every effort to ensure accuracy, but reserve the right to update specifications & prices
