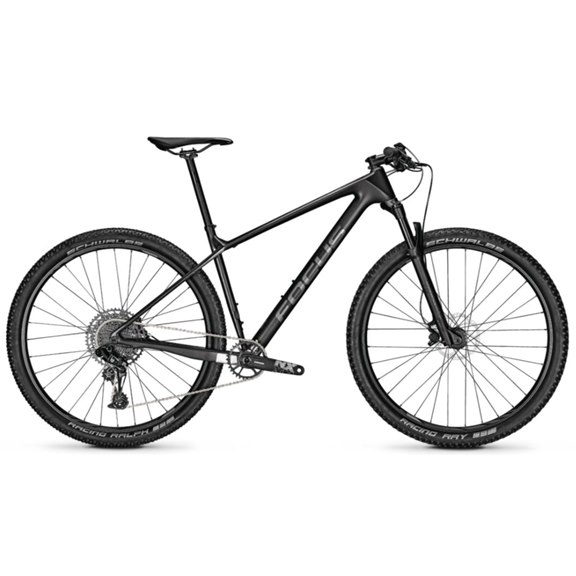

Focus Raven 8.6 Hardtail Mountain Bike

SKU: D637013122
£1,849.00
Item in Stock

Select Size

RAVEN 8.6 FEATURES

LIGHTWEIGHT CARBON FRAME WITH R.A.T. QUICK-RELEASE AXLES AND C.I.A. COMFORT

STABLE ROCKSHOX JUDY GOLD SUSPENSION FORK WITH 100 MM TRAVEL

SIMPLE SRAM NX EAGLE 1X12 SHIFTING AND POWERFUL MAGURA BRAKES


UNBELIEVABLE ACCELERATION

  • LIGHTWEIGHT AND COMFORTABLE

    The light carbon frame with specially designed tube shapes (C.I.A.) provides extra comfort: Your body weakens less and you stay fast over a longer period. Sophisticated carbon fibre orientation and tube dimensions for the seat tube, saddle stays, bottom bracket and steering head make the RAVEN as rigid as necessary and as comfortable as possible.

  • READY FOR RACING

    The RAVEN's geometry is made for maximum speed with maximum control, so race participation is appreciated. Nevertheless, trail fun is what makes the RAVEN special.

  • STIFF AND FAST

    The RAVEN rolls on the broad Boost hub standard with axles of 110 mm in the front and 148 mm in the rear. Therefore, it offers extra stability while the handling stays agile and precise. Furthermore, wheel changes can be carried out within seconds, thanks to the R.A.T. thru-axles.

SPEC

FRAME MATERIAL:
Carbon

FRAME:
Carbon frame, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm

FORK: Rock Shox Judy Gold RL 29 Boost, OneLoc remote, 15x110 mm, 51 mm rake, 100 mm travel

TRAVEL FORK:
100 mm

SHIFTER:
SRAM NX Eagle, 12-speed

REAR DERAILLEUR:
SRAM NX Eagle, 12-speed

SPROCKET:
SRAM PG-1230 Eagle, 12-speed

CHAIN:
SRAM NX Eagle

CRANKSET:
SRAM NX Eagle

BOTTOM BRACKET:
SRAM DUB

TRANSMISSION OF DRIVE:
front: 32, rear: 10-50

HANDLEBAR:
BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree

GRIPS:
Velo VLG108

STEM:
BBB Rider BHS-109 Deluxe, 31.8mm, 7degree

HEADSET: Acros AIX-322, tapered, IS 42/286-IS52/40

SADDLE:
FOCUS Race SL

SEATPOST: BBB Deluxe, Aluminium, 27,2mm, 350mm

BRAKES:
Magura MT2

BRAKE LEVER:
Magura MT2

BRAKE: Disc

RIMS:
Rodi Viper 21

REAR HUB: Novatec D162 Disc, 12x148 mm

FRONT HUB: Novatec D041, 15x110 mm

TIRES:
Schwalbe Racing Ray Performance 2.25

REAR TIRE: Schwalbe Racing Ralph Performance, 57-622

GEARS: 12

BIKE WEIGHT IN KG:
11,95 kg
