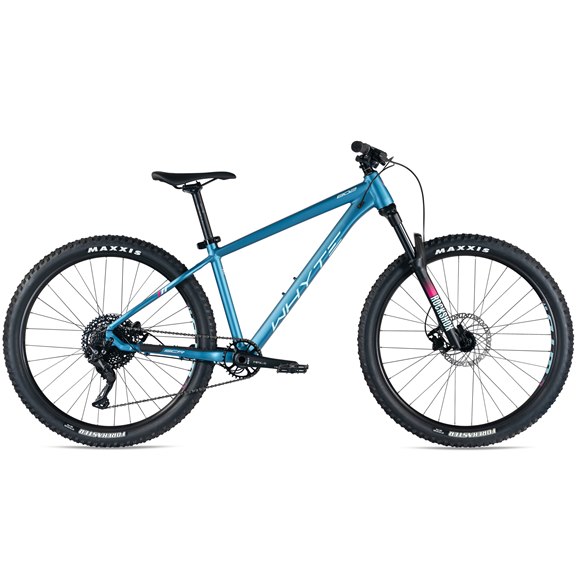

Whyte 802 Compact V4 Hardtail Mountain Bike

SKU: W8021SV4

£1,250.00

Item in Stock

Select Size

Medium

Small

XSmall

Quantity

The 802 is available in XS size. All sizes have more compact geometry than the 801 or 805 meaning slightly less top-tube length for a more comfortable reach, suiting riders with shorter proportions.

The 800 Series compact frames use the latest Whyte geometry for confidence-inspiring control. A short stem and wide 760mm bar combine with a 120mm travel fork for trail-bike levels of performance.

The 802 gets a Boost 148mm rear dropout which allows up to a 2.8” tyre to be fitted and provides increased mud clearance for year-round trail riding.

SPECIFICATION
COLOUR	Matt Diesel Light Blue/Magenta	CASSETTE	SunRace CSMS2, ED Black, 11-46, 10 Speed
FRAME	6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Get A Grip Seat Clamp System, Internal Cable Routing with BBX63 and Chainstay Post Mount Dropouts 12mm X 148mm Boost	CHAIN	SunRace 10 Speed
FORK	RockShox Recon RL 27.5", 120mm Travel, 37mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered Alloy Steerer, 110mm x 15mm Boost, Maxle Lite	CRANKSET	Whyte, Forged 2pcs Cranks, Direct Mount 32T Narrow/Wide Chainring, 170mm, 10 Speed
REAR SHOCK	N/A	BOTTOM BRACKET	BSA, Cartridge Bearings, 73mm
HEADSET	FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings	SEATPOST	Whyte 6061 Alloy, 15mm Offset, 30.9mm x 350mm, 2 Bolt Clamp
REAR HUB	Alloy, Cup & Cone, Double Seal, 10mm x 148mm Boost Thru Axle, 32 Hole	SADDLE	Whyte Custom
FRONT HUB	Alloy, Double Sealed Cartridge Bearings, 10mm x 148mm Boost Thru Axle, 32 Hole	HANDLEBAR	Whyte 6061 Alloy, 15mm Rise, 31.8mm, XS 740mm Wide, S/M 760mm Wide
SPOKES	DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples	STEM	Whyte Alloy, 40mm Extension
RIMS	WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole	GRIPS	Whyte Lock-on Enduro Grip
TYRE	Maxxis Forekaster 27.5"x 2.35" Dual Compound, 60TPI	BRAKES FRONT	Tektro Auriga HD-M280, 180mm Disc
SHIFT LEVERS	Shimano Deore SL-M4100, 10 Speed	BRAKES REAR	Tektro Auriga HD-M280, 180mm Disc, 180mm Disc, Internal Routing
FRONT MECH	N/A	BRAKE LEVERS	Tektro Auriga HD-M280
REAR MECH	Shimano Deore RD-M5120-SGS, Shadow Plus, 10 Speed	PEDALS	Fibre Reinforced Composite Platform
