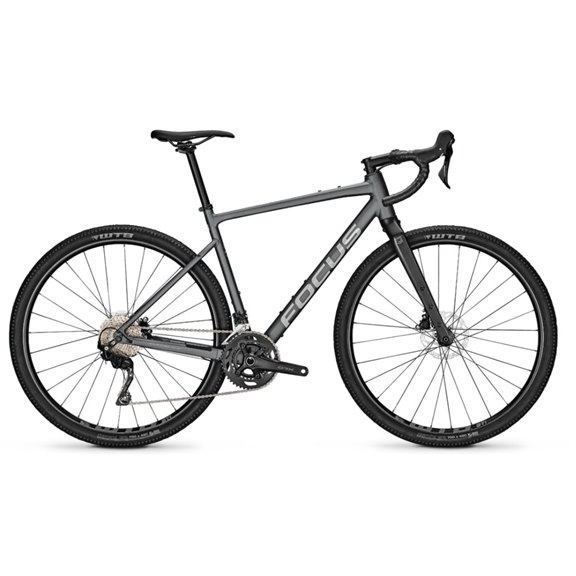

Focus Atlas 6.7 Gravel Bike

SKU: D641019423
Select Size

ATLAS 6.7 FEATURES

LIGHTWEIGHT AND ROBUST ALUMINIUM FRAME & FULL-CARBON FORK WITH INTEGRATED C.I.S. CABLE ROUTING, PLUS OPTION TO MOUNT PANNIER RACKS, FENDERS AND STAND

SHIMANO GRX400 2X10 GROUPSET FOR STABLE AND DEPENDABLE SHIFTING ON ANY TERRAIN

RELIABLE STABILITY AND LONG-LASTING QUALITY: DOUBLE-SEALED NOVATEC ROAD BOOST HUBS AND 23 MM WIDE WTB RIMS


PUSHES BOUNDARIES

  • COMFORT AND CONTROL ON ANY TERRAIN

    Whether bad weather, demanding surface, steep climbs or long distances – the fast and comfortable gravel bike offers full control and comfort thanks to wide handlebars with flare and disc brakes. The clean cockpit with cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.

  • HUGE TYRE CLEARANCE

    The ATLAS comes with 700c tyres, but is 650b-ready and can take tyre widths up to 47 mm. Therefore, you have plenty of opportunities to spec your ATLAS appropriate to your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.

  • VARIOUS OPTIONS TO MOUNT EQUIPMENT

    Three bottle cages can be mounted: On the seat tube, above the down tube and underneath the down tube. The position of the bottle cage above the down tube can be adjusted to fit a frame bag. Additionally, the ATLAS can be equipped with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork can take 3 kg each side.

SPECIFICATION

FRAME: Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing

FRAME MATERIAL: Aluminium

FORK: Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points

SHIFTER: Shimano GRX 400

FRONT DERAILLEUR: Shimano GRX 400

REAR DERAILLEUR: Shimano GRX 400

SPROCKET: Shimano CS-HG5010, 10-speed

CHAIN: Shimano Tiagra CN-4601

CRANKSET: Shimano GRX 600

BOTTOM BRACKET: BSA

TRANSMISSION OF DRIVE: Front: 46/30, Back: 11-36

HANDLEBAR: FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10 degree

STEM: Aluminium, 31,8 mm, 6 degree

HEADSET: Acros IS 52/286-IS52/40, FOCUS integrated C.I.S.

SADDLE: WTB SL8

SEATPOST: Aluminium, 27,2 mm, 350 mm, 0 mm set-back

BRAKES: Shimano GRX 400

BRAKE LEVER: Shimano GRX 400

BRAKE: Disc

RIMS: WTB ST i23 TCS, tubeless ready

REAR HUB: Novatec D041, 12x148 mm, Shimano 11 speed

FRONT HUB: Novatec D041, 12x110 mm

TIRES: WTB Riddler, 700 x 45C

GEARS: 20

BIKE WEIGHT: 10.95 kg
