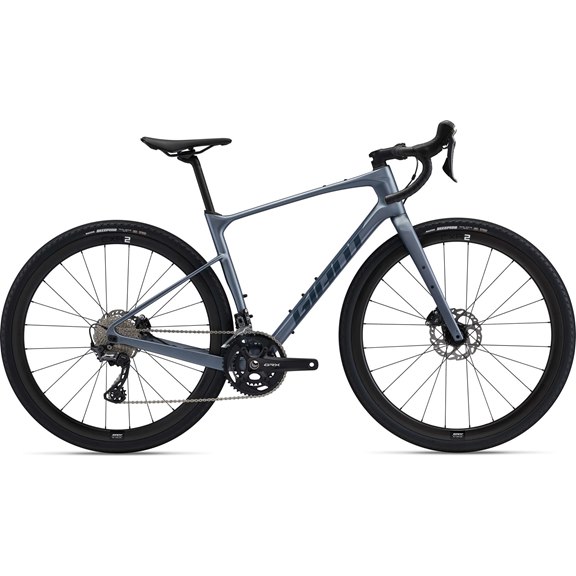

Giant Revolt Advanced 0 2022 Gravel Bike

SKU: 2212008107
Select Size

FAST GRAVEL, ROUGH GRAVEL, PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

KEY PERFORMANCE FACTORS

Fast and light

New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.

Tuned compliance

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

  • Sizes S, M, M/L, L, XL
  • Colours Knight Shield
  • Frame Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock N/A
  • Handlebar Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips Stratus Lite 3.0
  • Stem Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost Giant D-Fuse, composite, 14mm offset
  • Saddle Giant Approach
  • Pedals N/A
  • Shifters Shimano GRX RX-810, 2x11
  • Front Derailleur Shimano GRX RX-810
  • Rear Derailleur Shimano GRX RX-810 Max 34T
  • Brakes Shimano GRX RX-810 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
  • Brake Levers Shimano GRX RX-810 hydraulic
  • Cassette Shimano CS-HG800, 11-speed, 11x34
  • Chain KMC X11SL-1
  • Crankset Shimano GRX RX-810, 31/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket Shimano, press fit
  • Rims Giant CXR 2 Carbon Disc WheelSystem, 25mm inner rim width
  • Hubs Giant CXR 2 Carbon Disc WheelSystem
  • Spokes Giant CXR 2 Carbon Disc WheelSystem
  • Tyres Maxxis Receptor, 700x40c, tubeless
  • Extras Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 42mm max tyre size in "short" flip chip position
