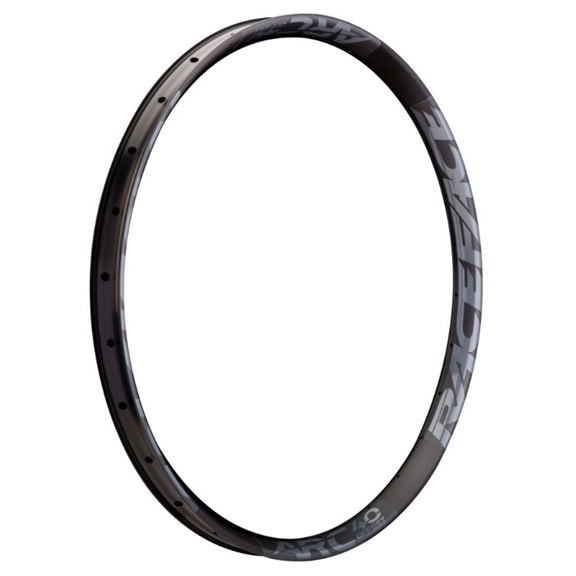

Race Face Arc Offset Rim 40mm 27.5" 32 Hole

SKU: 19ARCOS4027-532H

With a redesigned rim profile, the new ARC Offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC, significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep, we have a rim size and width option for every tyre and every riding style. Our tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence.

Features

  • Tubeless ready, strong tyre retention bead.
  • Sizes from 25mm to 40mm internal width.

Specification

27.5"29"
Rim Weight25mm - 418g, 30mm - 484g, 35mm - 520g, 40mm - 560g25mm - 445g, 30mm - 525g, 35mm - 553g, 40mm - 596g
FinishBrushed Black Anodise / Vinyl DecalsBrushed Black Anodise / Vinyl Decals
TypeTubeless Ready Clincher (Tape and valve kit sold seperately)Tubeless Ready Clincher (Tape and valve kit sold seperately)
Rim Material6069 High Strength Alloy6069 High Strength Alloy
Rim Depth20mm20mm
Rim Offset4.5mm4.5mm
Internal Rim Width25mm, 27mm, 30mm, 35mm, 40mm25mm, 27mm, 30mm, 35mm, 40mm
External Rim Width29mm, 31mm, 34mm, 39mm, 44mm29mm, 31mm, 34mm, 39mm, 44mm
Spoke Holes28 or 32 Hole28 or 32 Hole
Rim ERD562mm (25-40mm)600mm (25-40mm)
Max Spoke Tension122KGF / 1200N122KGF / 1200N
