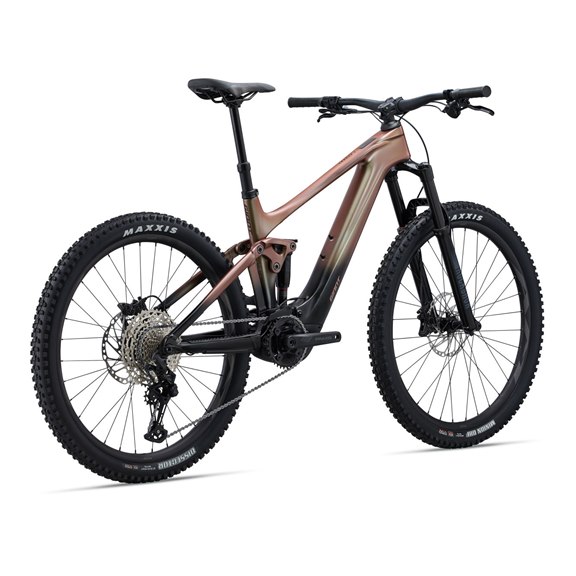

Giant Trance X Advanced E+ Elite 3 2023 Full Suspension Electric Mountain Bike
ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. A NEW ULTRA-SLIM BATTERY MINIMISES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.
KEY PERFORMANCE FACTORS
Lighter weight
New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 400 / SYNCDRIVE PRO
- Range
- Extreme: 21 miles
- Good: 43 miles
- Ideal: 80 miles
HIGHLIGHTS
All-new composite frame features adjustable geometry with a new flip chip feature. The SyncDrive Pro motor delivers 85Nm of torque for a seamless boost of power even at low speeds and on technical trails. The new composite Giant Contact SLR Trail integrated handlebar has a sleek design for precision off-road control. It comes with two control centres, the RideControl Go multifunctional on/off button on the top tube, and the new RideControl Ergo 3 handlebar-mounted remote.

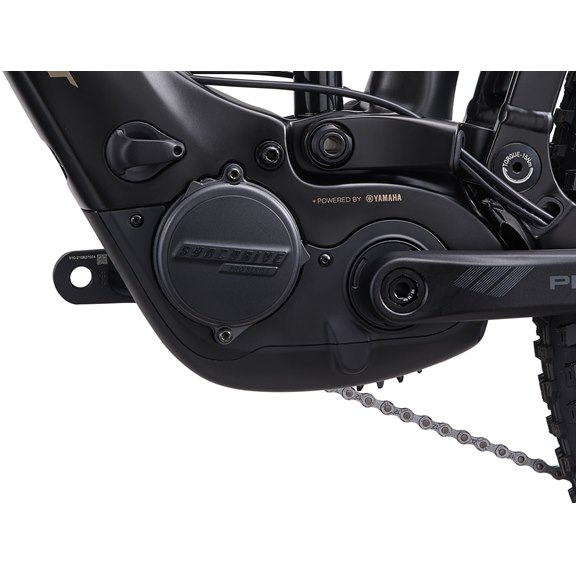

Motor Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Controller Giant RideControl Ergo3, grip integrated remote

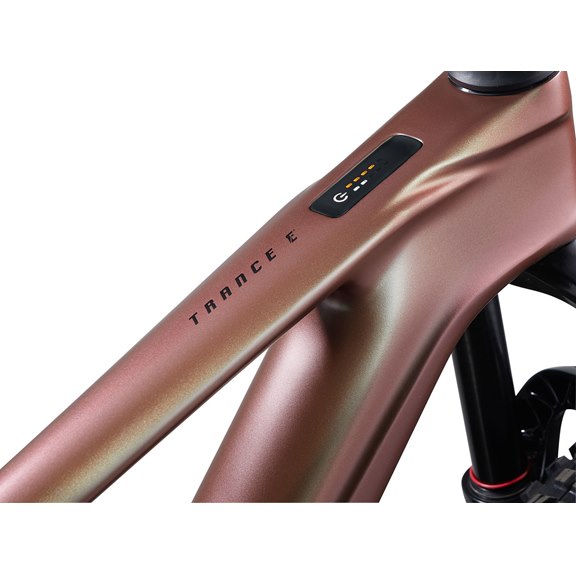

Display Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger Giant EnergyPak 4A smart charger, 60% in 1:45
Connectivity Giant RideControl App enabled ANT+ wireless display signal with E-bike profile
Sizes S, M, L, XL
Colours Messier/Panther

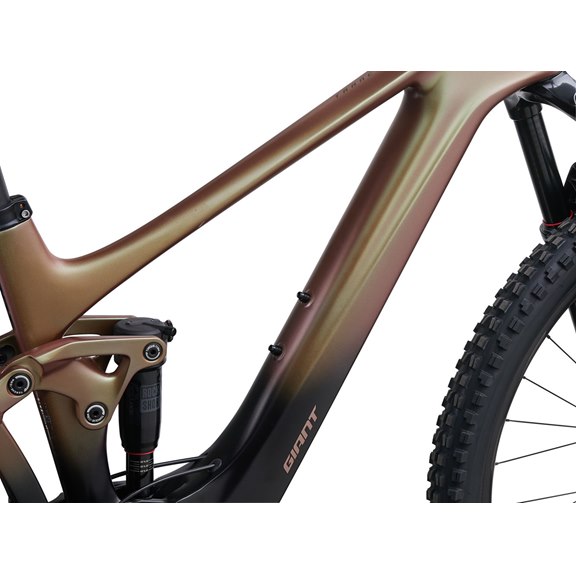

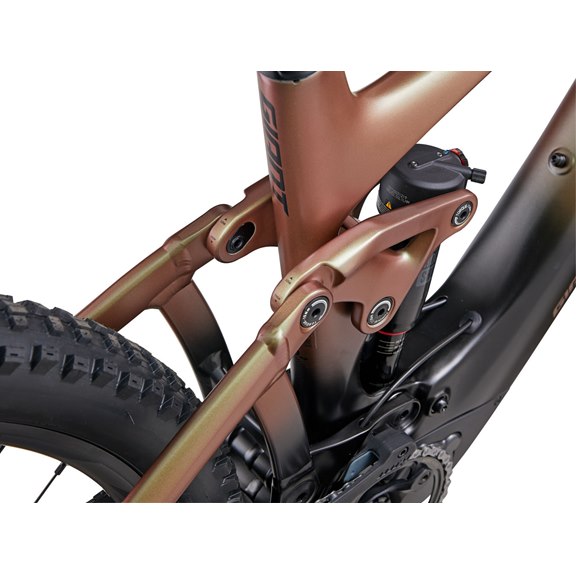

Frame Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised

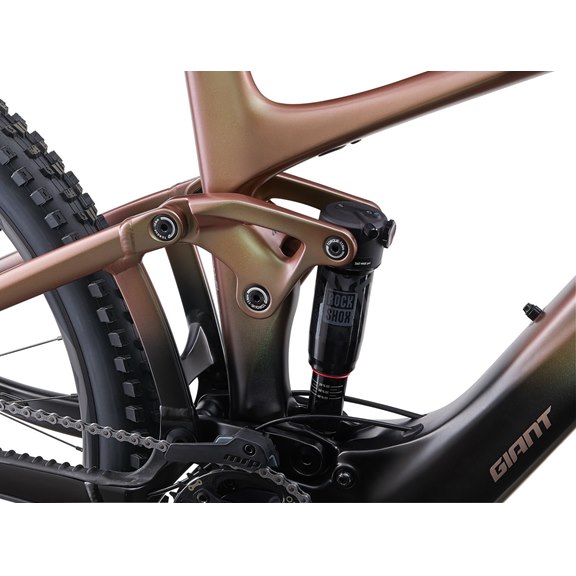

Shock Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned

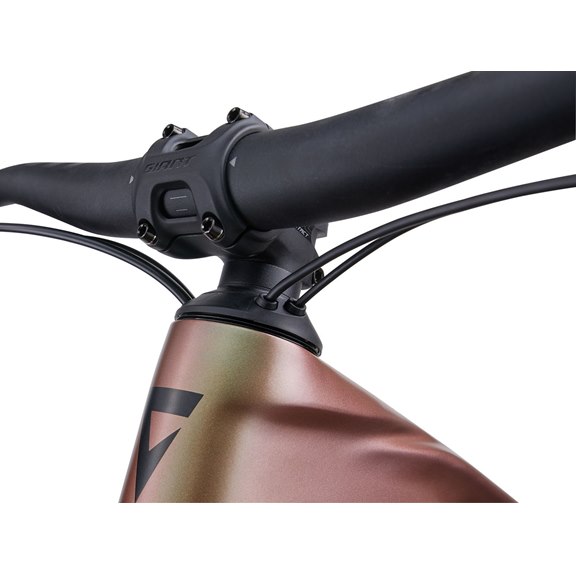

Handlebar Giant Contact SL 35 Trail, 35x780mm
Grips Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
Stem Giant Contact SL 35
Seatpost Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
Saddle Giant Romero, Neutral
Pedals n/a
Shifters Shimano Deore
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur Shimano Deore 12-speed
Brakes Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers Shimano Deore, I-spec EV
Cassette Shimano CS-M6100-12, 10-51T, 12-speed
Chain KMC e.12 Turbo, EcoProteq, e-bike optimised
Crankset Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
Bottom Bracket n/a
Rims Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, E-bike optimised
Hubs Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes Sapim E-Lite [R] Race [F], E-bike optimised
Tyres Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Extras Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
Lighting Optional: Giant Recon series E-bike lights available and direct connectable
