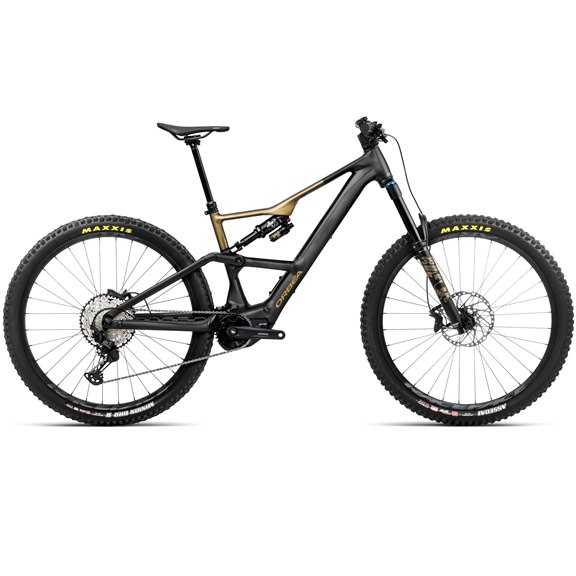

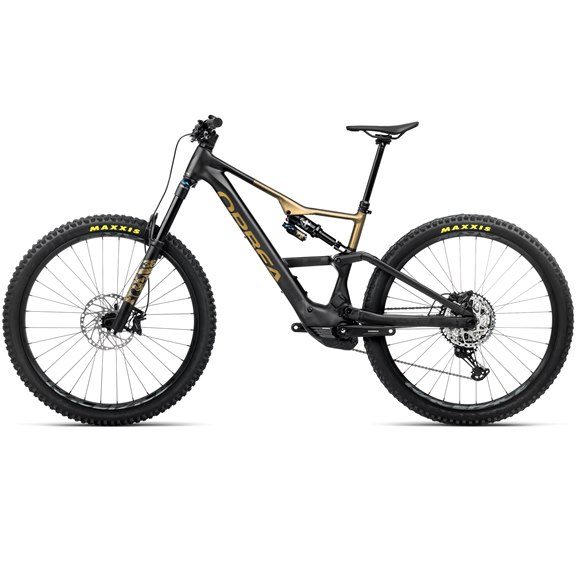

Orbea Rise LT H10 2025 Full Suspension Electric Mountain Bike
THE BEST JUST GOT BETTER
Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram.
Better handling, more power and increased stamina. Our updated Rider Synergy means more control than ever before, giving an unbeatable trail experience no matter where you ride.
Frame
Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
Shock
Fox Float Performance 2-Pos Evol LV custom tune 210x55mm
Fork
Fox 36 Float Performance 160, Grip 3-Pos, QR15x110
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Battery
Orbea Internal 630Wh
Motor
Shimano EP801 RS Gen2 MC
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote
EN600-L
Chainring
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Crank
Shimano Steps EM600
Shifters
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Rear derailleur
Shimano XT M8100 SGS Shadow Plus
Chain
Shimano M6100
Chainguide
Orbea eBike chainguide
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Shimano M6120 Hydraulic Disc
Wheels
Race Face AR 30c Tubeless Ready
Tyres
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Tyres
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Saddle
Fizik Terra Ridon X5 145mm
Grips
OC Lock On
Tools
OC Rear axle lever (Hex 6 + valve core removal)
