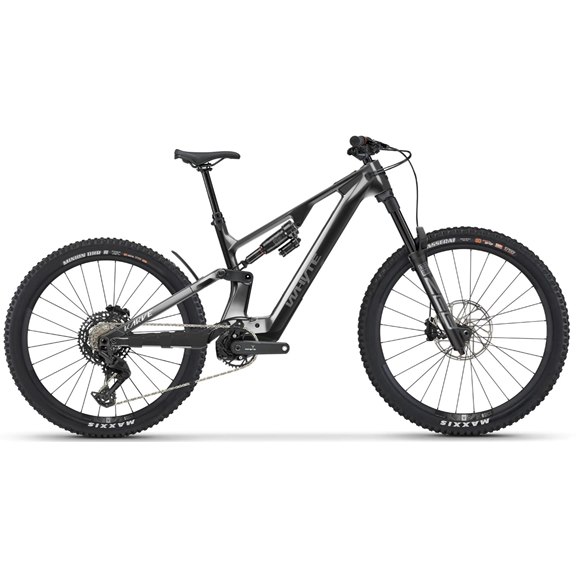

Whyte Karve Evo RS 2026 Full Suspension Electric Mountain Bike

SKU: WEKAREVORS2MV1-1

£5,650.00

Select Size

Large

Medium

XLarge

Quantity

Extreme exhilaration, exceptional performance
Dressed to impress and packing a serious performance punch, Karve EVO RS is our most affordable, unstoppable, maximum control gravity thrill machine for self-shuttled riding, bike park play, and big mountain terrain. Engineered with the confidence, capability and control to enable you to master extreme lines, the power to shuttle effortlessly, and the range to drop in again, and again, and again... If the biggest terrain is your playground, Karve EVO RS is your access all areas pass.

Highlights
– 180mm front and rear of Whyte custom-tuned suspension travel.
– Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
– Avinox full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
– SRAM Eagle 70 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
– Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
– 800Wh internal battery so you can get more runs in.
– MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.

eBike Specifications

DRIVE UNIT Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.

BATTERY Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.

DISPLAY Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.

CHARGER Charger 4A (230V)

Specifications

COLOUR Gun metal (matt)

FRAME Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts

FORK RockShox ZEB Select, 180mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth

REAR SHOCK RockShox Super Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, 230 x 62.5mm, custom tuned for Whyte

HEADSET ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings

REAR HUB Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub

FRONT HUB Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole

SPOKES 14g stainless black, brass nipples

RIMS Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front, 27.5" rear

TYRES Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)

SHIFT LEVERS SRAM Eagle 90, 12 speed

FRONT MECH N/A

REAR MECH SRAM Eagle 70 T-Type mechanical, 12 speed

CASSETTE SRAM XS 1270, T-Type, 10-52T, 12 speed

CHAIN SRAM Eagle 70, 12 speed

CRANKSET Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type

BOTTOM BRACKET N/A

SEATPOST TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)

SEAT Whyte Custom

BAR Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide

STEM Whyte, 35mm extension, 35mm bar bore

GRIPS Whyte Enduro lock-on
