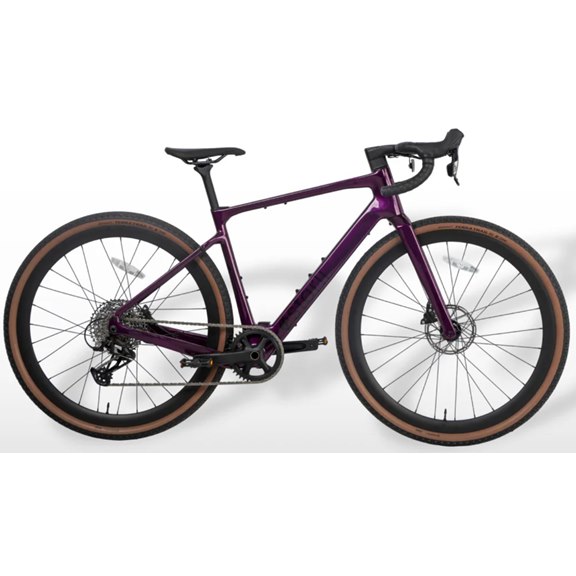

Estarli G700 Carbon Electric Gravel Bike

Estarli G700 E-Gravel — Technical Specifications

Key Specs

Colour Cosmic Purple

Rider Weight Limit 110 kg

Battery Capacity 36 V 7 Ah / 250 Wh — Samsung lithium-ion cells, compliant with EN 50604 e-bike battery safety standard

Charge Time Up to 3.5 hours

Range 40–60 km / 25–40 miles

Assist Limit 15.5 mph / 25 km/h

Handlebars Carbon integrated cockpit

Display Centrally mounted, out-front

Weight 13.5 kg

Warranty 2 years

Drivetrain 12-Speed SRAM Apex / Rival derailleur & shifters

Technical

Frame Carbon Fibre T700

Fork Rigid carbon

Gearing Options 11 – 44 T

Brakes SRAM Apex Hydraulic

Tyres 700 C × 45

Hub Motor Estarli Cycle Systems (CSG 4.0 T), integrated torque sensor (40 Nm)

Geometry & Dimensions

Small / Medium | Large

Bike Weight 13.5 kg | 13.5 kg

Weight Capacity 102 kg | 102 kg

Rider Height Range 160–173 cm | 172–193 cm

Max Seat Height 995 mm | 1051 mm

Min Seat Height 905 mm | 961 mm

Stand-over Height 751 mm | 806 mm

Wheelbase 1028 mm | 1040 mm

Top Tube Length 545.5 mm | 572 mm

Headtube Length 150 mm | 190 mm

Seat Tube Length 500 mm | 560 mm

Chainstay Length 435 mm | 435 mm

Fork Length 393 mm | 393 mm

Head Tube Angle 71° | 72°

Seat Tube Angle 73.5° | 73°

Stack 573 mm | 615 mm

Handlebar Reach 376 mm | 384 mm

Total Length 1732 mm | 1744 mm

Handlebar Height 922 mm | 963 mm
