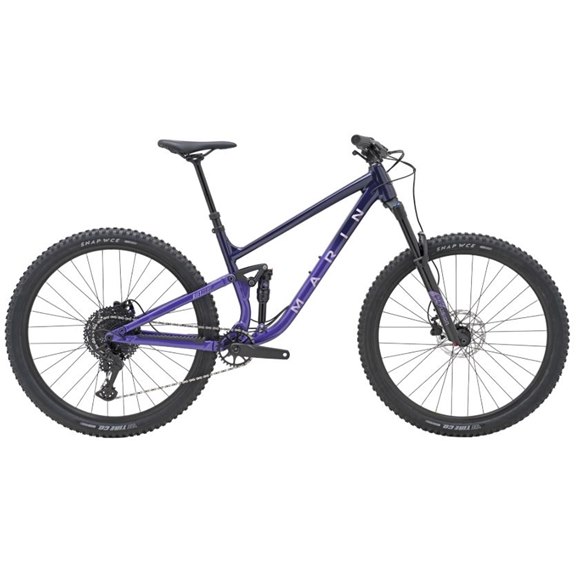

Marin Rift Zone 1 2025 Full Suspension Mountain Bike

Frame

Series 3 6061 Aluminum, 27.5 or 29" Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Front Suspension

X-Fusion Slide (29) or Sweep(27.5) Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset

Rear Suspension

X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom

Rim

Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear

Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

Hub Front

Shimano HF-MT400B, 110x15mm, Centerlock

Spokes

14g Black Stainless Steel

Tires

Vee Tire Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible

Derailleur Rear

Shimano RD-U6000, 11-Speed GS

Shift Lever

Shimano, SL-U6000-11R, 11-Speed

Crankset

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing

Bottom Bracket

External Sealed Cartridge Bearing

Chain

Shimano LG-500 11-Speed

Cassette

Shimano CS-LG400-11, 11-Speed, 11-50T

Brakes Front

Tektro HD-M280 Hydraulic Disc, 180mm Rotor

Brakes Rear

Tektro HD-M280 Hydraulic Disc, 180mm Rotor

Brake Levers

Tektro HD-M280

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem

Marin 3D Forged Alloy, 35mm

Grips

Marin MTN, Closed End

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm

Saddle

Marin Speed Concept
