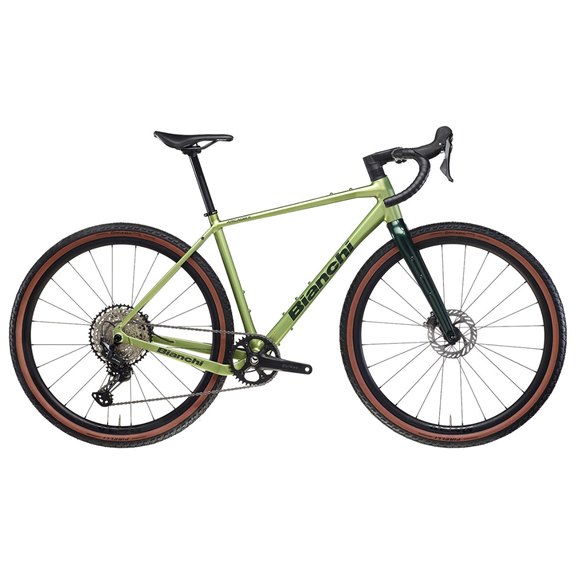

Bianchi Arcadex AL GRX610 12SP 2025 Gravel Bike

Frame Bianchi Arcadex AL, aluminium, hydroformed tubes, tire clearance 50 mm, T47 Bottom bracket, rack and fender compatibility sizes XS- SM-MD-LG-XL

Fork Bianchi Arcadex, Carbon, flat mount disc frake, thru axle 12x100 mm

Headset Acros for internal cable routing

Shifters Shimano GRX, shifter lever ST-RX610, caliper BR- RX400

Rear Derailleur Shimano GRX, RD-RX822, 12sp

Crankset Shimano GRX, FC-RX610, 40T Crank length: 165 mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL)

Bottom Bracket Token T47, 24 mm axle, 86.5 mm width

Chain Shimano 105, CN-M7100

Cassette Shimano SLX, CS-M7100, 10-51T, 10-12-14-16- 18-21-24-28-33-39-45-51T

Brakes Shimano BR-RX410 Hydraulic disc brake

Brake Levers Included in the shifter

Rotors FRONT: Shimano RT-CL700 Center Lock, 160 mm / REAR: Shimano RT-CL700 Center Lock, 160 mm

Wheels Velomann V22G, Rim: Aluminium, 622x24c, 24h

Tire Pirelli Cinturato Tanwall, 700x45

Stem Velomann AL6061, rise -7° Size: 70 mm (XS); 80 mm (SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)

Handlebar Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)

Grips / Extensions Bianchi Hexagon tape, 2.5 mm thickness, black

Seatpost Clamp Bianchi Aluminium, diameter 31.8 mm

Seatpost Velomann Aluminium, 27,2 mm, Seatback 0 mm length: 300 mm (XS); 350 mm (SM-LG); 400 mm (XL)

Saddle Selle Royal SRX Open
