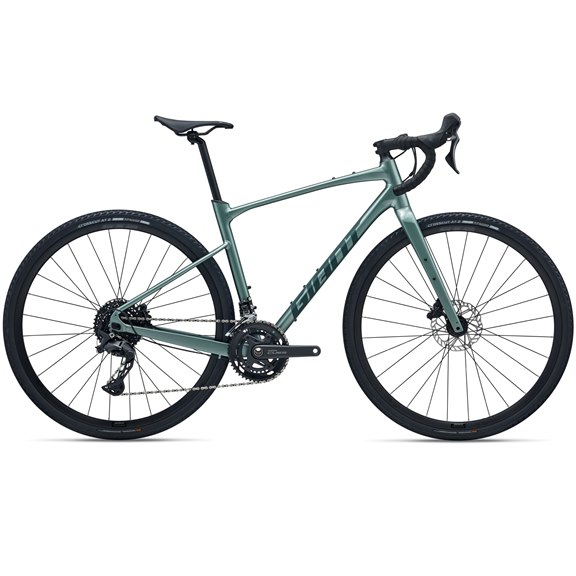

Giant Revolt 1 2026 Gravel Bike

SKU: 9080014115

£1,399.00

Item in Stock

Select Size

Large

Medium

Medium/Large

Quantity

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Sizes S, M, M/L, L, XL
Colour Alpine Green
Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips cork tape with gel
Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse, alloy, 14mm offset
Saddle Giant Grit
Pedals PEDALS NOT SUPPLIED
Shifters Shimano CUES U6030, 2x10
Front Derailleur Shimano CUES U6030
Rear Derailleur Shimano CUES U6020
Brakes Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers Shimano CUES U6030 hydraulic
Cassette Shimano CS-LG300, 11x39
Chain KMC X11
Crankset Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket Shimano, threaded
Rims Giant S-X2, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes stainless
Tyres CrossCut GRIP 1; 700x45c
Extras tubeless prepared
Max Tyre Clearance 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
