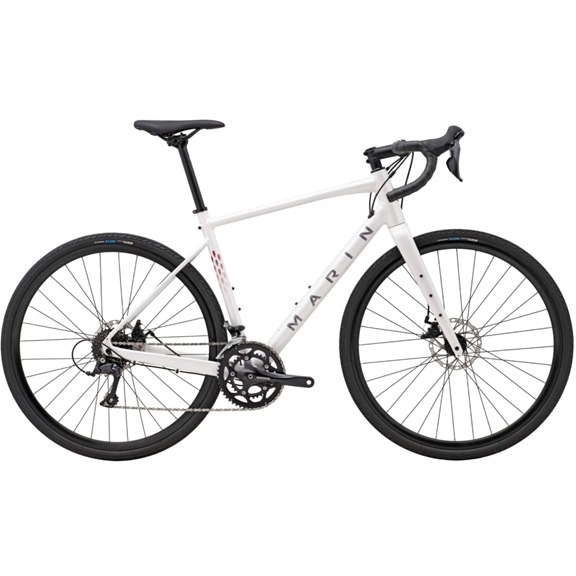

Marin Gestalt 1 2025 Gravel Bike
The Marin Gestalt takes you Beyond Road.
Tarmac and trail, rough roads and muddy commutes, bike packing, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.
A cut above the entry-level Gestalt, the Gestalt 1 steps up to a Series 3 aluminum frame and full carbon fiber fork, all while still keeping the value high and the price tag low. WTB Exposure 36mm wide tires, 2x9-speed Shimano Sora drivetrain, Tektro mechanical disc brakes and plenty of quality Marin components all add up to bags of value and heaps of fun.
Specifications
Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Rims
Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible
Hub, Rear
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Hub, Front
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Spoke, Nipples
14g Black Stainless Steel
Tires
WTB, Exposure Comp, 700x36
Derailleur, Rear
Shimano Sora 9-Speed
Derailleur, Front
Shimano Sora
Shift Lever
Shimano Sora 2x9-Speed
Crankset
Shimano R345 Octalink Compact, 50/34T
Bottom Bracket
Shimano Octalink V2 Cartridge
Chain
KMC X9
Cassette
SunRace 9-Speed, 11-32T
Brake, Front
Tektro MD-C550 Dual Piston Road Mechanical, 160mm Rotor
Brake, Rear
Tektro MD-C550 Dual Piston Road Mechanical, 160mm Rotor
Brake Levers
Shimano w/ Integrated Shifters
Handlebar
Marin Butted Alloy, Compact 12º Flared Drop
Stem
Marin 3D Forged Alloy
Grips
Marin Perforated Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost
Marin Alloy, 27.2mm
Saddle
Marin Beyond Road Concept
Pedals
Marin Oso OEM Nylon Platform
