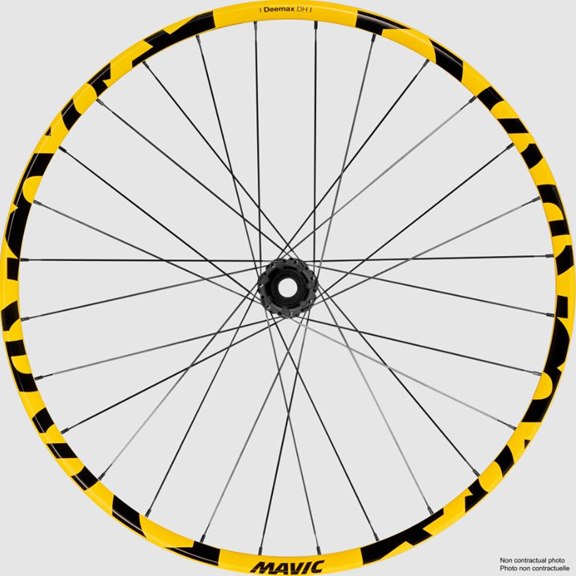

Mavic Deemax DH YLW 29" Wheels

The limited-edition Deemax DH YLW 29 wheel celebrates the 25th anniversary of the iconic Deemax DH in style. Featuring its legendary design in an even brighter yellow, this tribute wheel pays homage to the legends who have written the greatest pages in its history, including Nicolas Vouilloz, Greg Minaar and Sam Hill.

This exceptional wheel was designed at the foot of the French Alps and developed, tested and approved by the riders in the Mavic DH team. It features a 30mm wide welded rim specifically designed to absorb the most violent impacts and to smooth out the vibrations of riding, providing maximum confidence and active relaxation on aggressive terrain.

The Deemax DH YLW is fitted with 28 J-Bent spokes in swaged steel, creating the best possible balance between robustness and compliance for maximum efficiency on the most demanding descents. Designed to be quick and easy to repair in the event of a failure, these spokes don’t require a tedious pit stop to get back on the track quickly. Each wheel comes with two replacement spokes for even greater peace of mind.

The Deemax DH YLW 29’s wide rim shape makes it easy to fit DH tires with cross-sections between 2" and 3", offering riders exceptional versatility to adapt their tire setup to any condition.

The ultimate downhill wheel, the Deemax DH YLW 29 celebrates Mavic’s heritage and innovation and has a proven track record for providing top performance on the roughest descents.. Choose total confidence in demanding terrain, with ease of maintenance and versatility as bonuses.

MAIN FEATURES

Mythical and disruptive yellow wheel design

A tribute to the numerous victories of Nicolas Vouilloz, Greg Minaar, Sam Hill…
Mavic's signature yellow rim painting rejuvenated

Take on rough terrain with confidence

Wider welded rim (30mm width) is designed to absorb heavy impacts
The 28 double-butted J-Bent spokes offer the best compromise between strength and dynamism

Easy to service

Quick and easy to fix thanks to J-Bent spokes
Two replacement spokes delivered with every wheelset
Wide rim shape facilitate DH casing tire between 2,0’’ and 3,0’’ set-up, which allows pilots to choose their favourite set-up

SPECIFICATIONS

Weight

• Weight Pair : 2070 g
• Weight Front : 990 g
• Weight Rear : 1090 g

Rims

• Material: S6000 Aluminum
• Joint: SUP welding technology
• Internal width: 30 mm
• Drilling: traditional
• Tire: UST Tubeless and tubetype
• ETRTO size 29: 622x30TC
• Braking: disc
• Weight reduction: ISM
• UST Tubeless Ready
• Use with Mavic Tubeless Tape
• Asymmetrical rim design

Spokes

• Material: steel
• Nipples: steel, ABS
• Count: 28 front and rear
• Lacing: front and rear crossed 3

Hubs

• Front and rear bodies: aluminum
• QRM Auto bearing preload technology
• Instant Drive 360 freewheel technology
• DH spacing axles: 12X150 , 12x157
• Axles: Front 15/20X110 Boost ; Rear 12X148 Boost
• Hub available with 6-bolt brake rotors

Versions

• Disc standard : 6 Bolts only
• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
• Diameter: 29'' and Mullet (Frt 29'', Rear 27.5'')
• 28 holes
• Hub width : Front Boost (15/20x110), Rear Boost 12x148 or Rear Super Boost 12x157

Compatibility

• Freewheel: Shimano HG9, XD or Micro Spline
• Front axle: 20mm, convertible to 15mm thru axle with optional adapters
• Front axle: 15x110 Boost thru axle
• Boost Axles : 15/20X110 ; 12X148
• Rear axle: 12x148 Boost thru axle
• DH spacing axles: 12X150 , 12x157

Compatible Adapters and freewheel bodies

• Boost 20 to 15mm front adapter (12982801 sold separately)
• Boost : 20x110 boost front hub cap (V2680401 sold separately)
• ID360 Shimano HG9 alloy freewheel body (V3780101 sold separately)
• Boost : Torque Caps (V2650401 sold separately)

Delivered with

• UST valve and accessories
• Pre-installed tubeless rim tape
• Multifonction adjustment wrench (delivered with rear wheel)
• 2 replacement spokes with each wheel
• 12X150 adapters delivered with 12X157 rear wheel

Intended use

• ASTM CATEGORY 5 : GRAVITY RIDING FOCUSED ON THE DESCENT
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
• Maximum tyre pressure: 2.95bar/43PSI with a 52mm/2.0 tyre - 2.85bar/41PSI with a 64mm tyre
• Recommended tire sizes: 60mm to 76mm (2.35 to 3.0)
