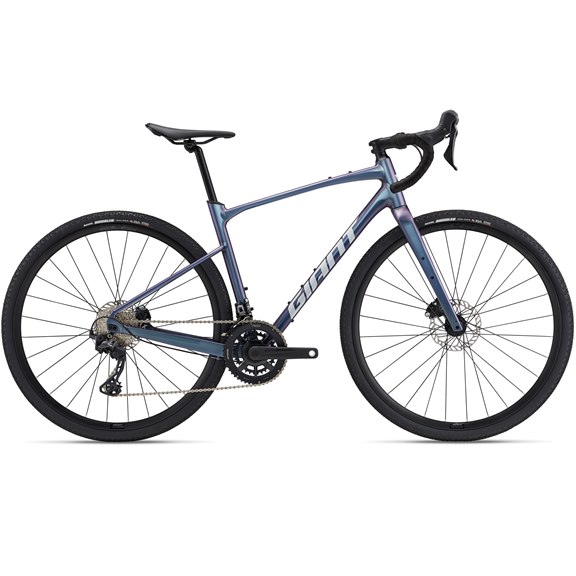

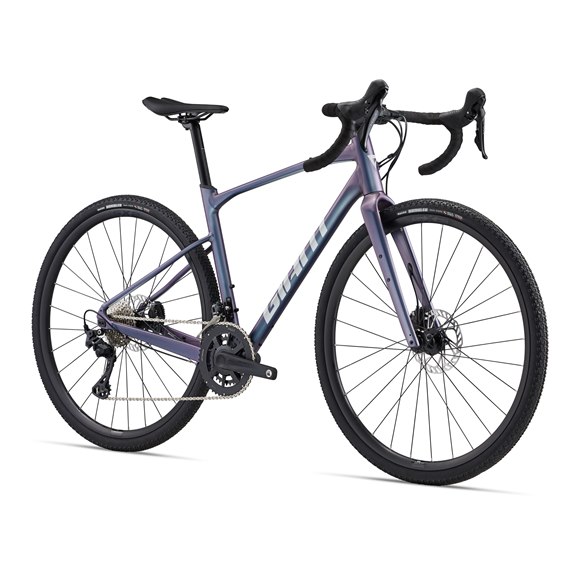

Giant Revolt 0 2025 Gravel Bike
Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
- Sizes S, M, M/L, L, XL
- Colours Gloss Blue Dragonfly
- Frame ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
- Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
- Shock N/A
- Handlebar Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
- Grips cork tape with gel
- Stem Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- Seatpost Giant D-Fuse, alloy, 14mm offset
- Saddle Giant Approach
- Pedals PEDALS NOT SUPPLIED
- Shifters Shimano GRX RX-610, 2x12
- Front Derailleur Shimano GRX RX-820
- Rear Derailleur Shimano GRX RX-820
- Brakes Shimano BR-RX410 HRD, Giant MPH rotors [F]160mm, [R]160mm
- Brake Levers Shimano GRX RX-610 hydraulic
- Cassette Shimano 105, 11x34
- Chain KMC X12L-1
- Crankset FSA Omega Modular AGX+, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket FSA Mega EXO
- Rims Giant S-X2 Disc wheelset, alloy
- Hubs Giant alloy, 12mm thru-axle
- Spokes Stainless steel
- Tyres Maxxis Rambler, 700x40c, tubeless
- Extras Factory tubeless set up
- Max Tyre Clearance 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
- Max Chainring Size SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T
- Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
